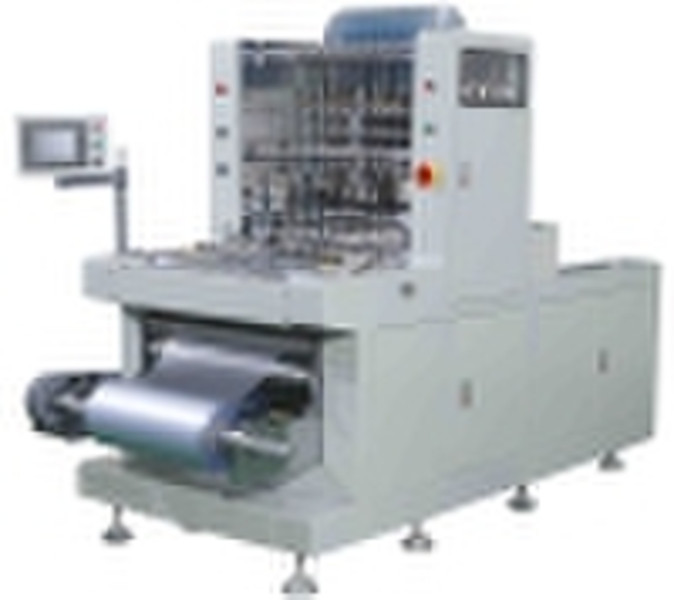

Magnetic Tape Laying Machine

Range of application: 1.Equipped with boiling hot ethnics, coiled magnetic strip was mounted on the PET or PVC film or card material stable, which is under the effect of heating up and pressurization. After finish mounting, it will be cutter automatically which the length have to be set up beforehand, the action of mounting and cutting was finished automatically automatically, at the same time, the recycling system will recycle the magnetic strip foil. This machine equipped with the advantage of high precision and work stable, and so on. 2.Scope of applicable material: coiled film Technical feature: 1. Scope of thickness: 0.04-0.2mm.Sheet film scope of thickness: 0.25-0.8mm System was controlled by PLC program automatically , touch panel human-machine interface show 2. Fed by servo motor drive, control move speed and length of sending film can be adjustable. 3. Temperature and pressure can be controlled separately and adjustable. 4. Many units of trolley impact installation , the pressure of cylinder can be adjustable, which to ensure the parallel and orderliness when the magnetic was covered in the card. 5. Punching film motility was driven by cylinder, which is have the simple structure and work stable. 6. Recycling system will recycle the magnetic strip foil automatically Technical Specification: Coil stock film: 0.04-0.2mm inner diameter:3inches,outer diameter< 20inches (500mm). Maximum width:580mm Board material: 0.25-0.8mm, Maximum width:580mm Magnetic strip width: 1/2 inches (12.7mm) 1/4 inches (6.4mm) Maximum quantity of magnetic strip: 8 tracks Moving speed: 5-7m/minute Positional Accuracy: ±0.2mm Servo motor: 0.9KW Common motor: 0.4KW 0.06KW*2pcs Heating Power: 1.2KW Weight: 1500KG Dimension: 2200*1000*1600mm
