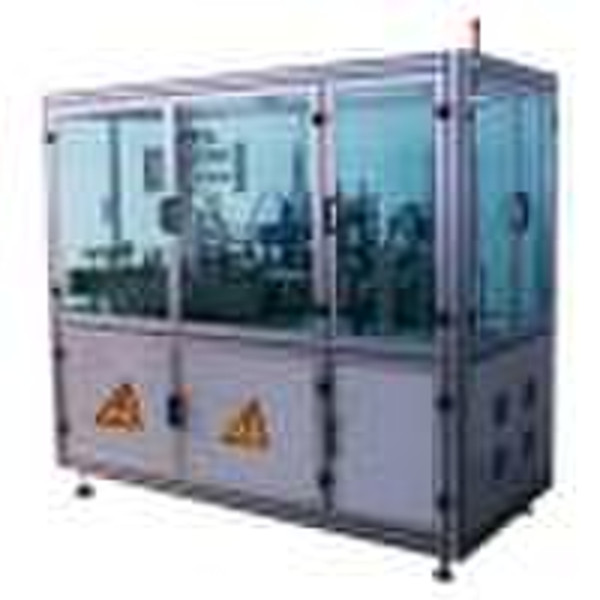

IC Chip Embedding Machine

Features: 1) Milling, embedding and testing are in one machine 2) Be able to realize fully-automatic milling, embedding and testing independently professional clamp design make milling and embedding not effected by the difference of card size and thickness 3) Milling place and size can be freely adjusted within the stroke 4) Pre-fix four different mould permanent procedures, can be freely selected through human-machine port 5) Self-cleaning after milling to ensure embedding quality 6) Self-monitoring step-in and cutting position to avoid any damage 7) Self-acknowledge of mould damage to ensure no damaged mould embedded 8) Cold-welding make the cooling and fixing more quicker 9) High-temp/low-temp melt glue are both compatible 10) Mould function self-checking structure, separate damaged card away 11) Mechanical runs self-monitoring function, display error in the display board 12) Use high-resolution touch screen, easy to operate 13) Dimensions: 2,200 x 1,000 x 2,100mm 14) Net weight: 800kg 15) Power: 5kW 16) Air source: 6kg/cm² 17) Control type: two axles servicing system + PLC 18) Production capacity: 1,500pcs/hour
